Electrical Power Solution - Consultant, Manufacturer & Turnkey Project Contracter

  • LT Panel
  • PCC Panel
  • MCC Panel
  • ACB Panel
  • VCB Panel
  • Star Delta Panel
  • Out Door Panel
  • APFCR Panel (Capacitor Panel)
  • DOL Starter Panel
  • VFD Panel
  • PLC Panel
  • Motor, Pump & Compressor Panel
  • Field Wiring

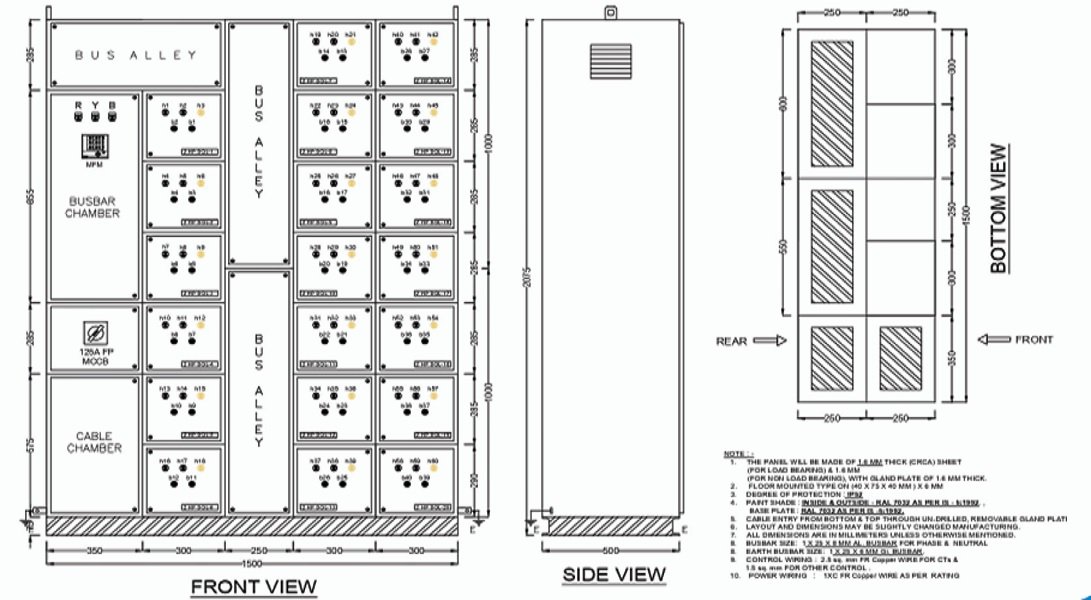

Electrical Panel 1

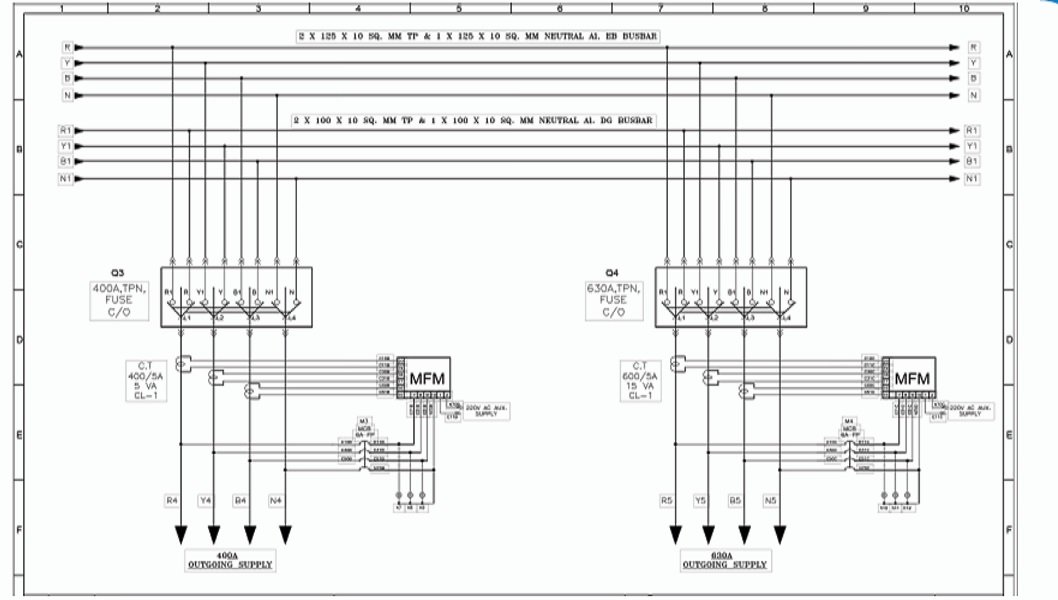

Electrical Panel 2

IN-HOUSE FACILITY-

  • Dedicated Design Team.
  • Project Management Team.
  • Skilled Fabrication & Commissioning Team.
  • Machinery - Cutting Machine, Bending Machine, Arc Welding Machine, Mig Welding Machine, Drilling Machine, and Hand Drill Machine, 4 Inch & 5 Inch Cutting Machine, Buffing Machine, Heat Gun machine, Busbar Bending Machine, Busbar Punching Machine.

TESTING EQUIPMENTS-

  • Primary Injection Test Kit
  • Secondary Injection Test Kit
  • Variable Voltage Bench
  • High Voltage Tester
  • Insulation Resistance Tester
  • Multimeter
  • Clamp Meter
  • DFT Meter
  • Coating Treatment Tester

CONSTRUCTIONAL DETAILS-

  • Sheet metal Fabrication
  • Frame : 2.0 mm CRCA Sheet steel
  • Door : 1.5 / 2.0 mm CRCA Sheet steel
  • Side cover/Partition : 1.5 mm CRCA Sheet steel
  • Gland plate : 3.0 mm CRCA/Aluminum Sheet steel
  • Baseframe : 75.0 mm ISMC Channel
  • Busbar work - Aluminum / Copper
  • Ingress Protection - IP-42/IP-54/IP-55/IP-65
  • Fault level - 25 kA / 50 kA / ss kA /100kA for 1 second
  • Powder Coating
  • 7 Tank pretreatment process
  • Color . RAL 7032/ RAL 7035
  • Shrouds to separate live terminals
  • Compartmentalized design
  • Control wire - 1.1 KV. FRLS/HRFR

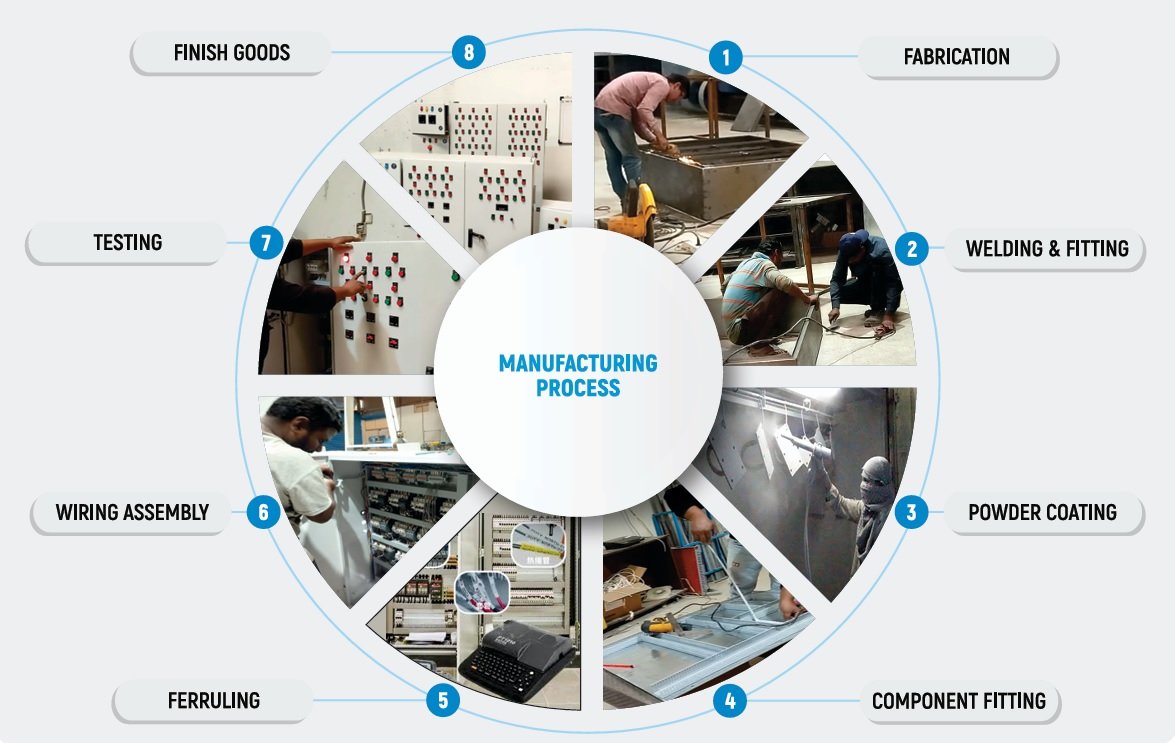

Manufacturing Proces

Electrical Process
